StarTech.com

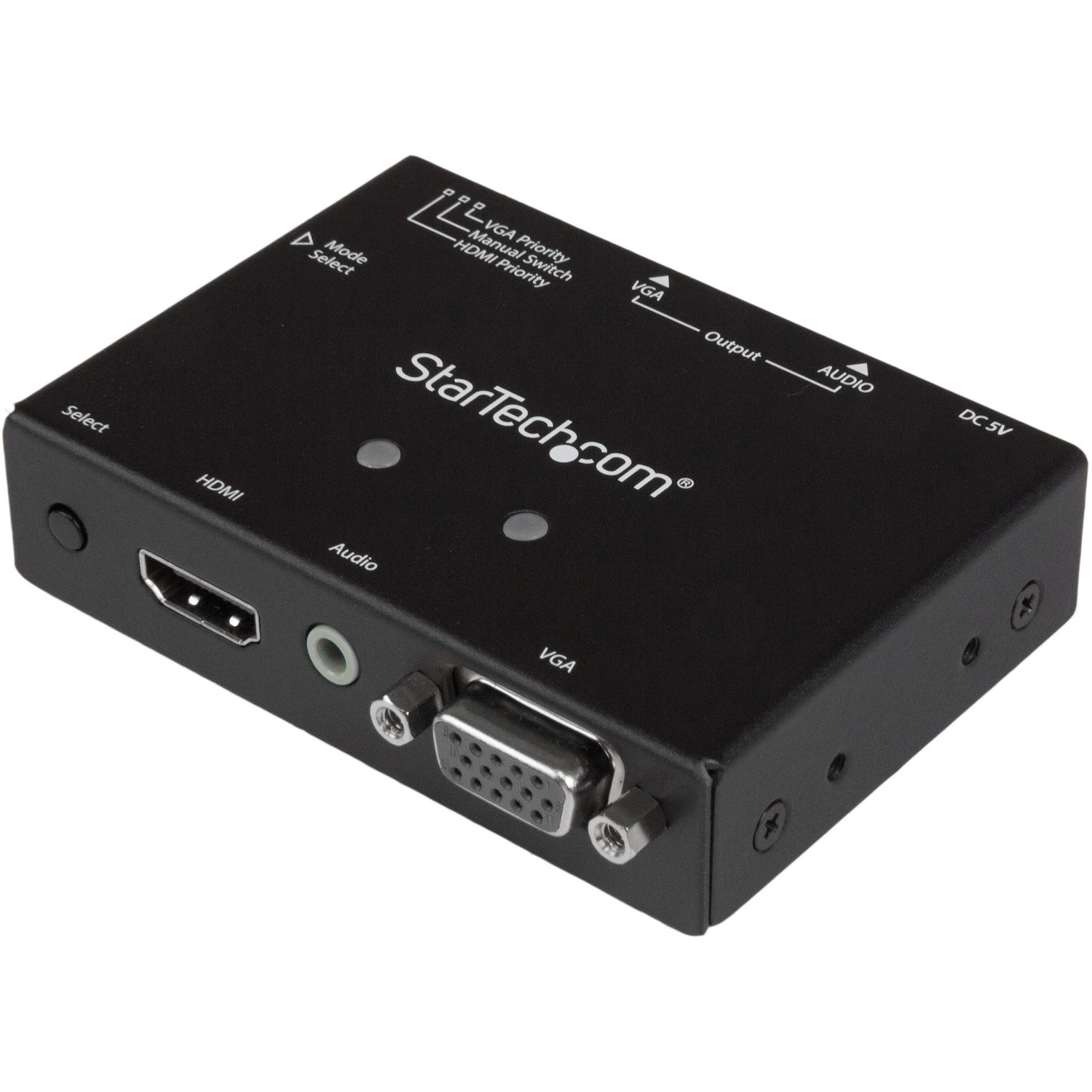

StarTech.com 2x1 VGA + HDMI to VGA Converter Switch w/ Priority Switching -1080p
Ships in 6-10 Bus Days
Non Returnable
Special Order Item
Shippable Product
1920 x 1200 - WUXGA - 2 x 1 - Projector, Display, Set-top Box, Computer, Digital Signage1 x VGA Out - TAA Compliant
- Accommodates both VGA and HDMI input devices in a single switch with VGA output, saving hassle and expense by reducing the need for adapters
- Effortless control with priority port selection
- Ideal for classroom and boardroom display applications, allowing presenters to connect a wide range of devices
- Supports video resolutions up to 1920x1200 / 1080p
- Supports EDID pass-through, EDID Copy and EDID Emulation
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
VS221HD2VGA
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
2x1 VGA + HDMI to VGA Converter Switch w/ Priority Switching -1080p
Marketing Information
The VS221HD2VGA VGA &HDMI AutoSwitch lets you connecttwo distinct A/V sources -- oneVGA and oneHDMI to the same VGA monitor or projector, and automatically or manually switch between which video source is displayed. Thismulti-inputswitchsupports video resolution up to 1920x1200 (1080p)andincludes mounting hardware for a tidy, professional installation. One Switch for HDMI and VGA The A/V switch features built-in HDMI conversion, enabling you to connect an HDMI as well asa VGA video source to the sameVGA display, without the use of additional adapters or scalers.The switch also supportsEDID pass-through, EDIDcopy, and EDID emulation to ensure your HDMI and VGAnative resolutions will be maintained between both source connections. Effortless Control The VS221HD2VGAensures hassle-free operation with support forpriority port selection, enablingyou tochoose which port should be selected firstby sequence.Once the device connected to your specific port is activated, theswitch will thenautomatically select that port. Focus on YourPresentation not Boardroom Connections This A/V switch has been designed with the boardroom and classroom in mind. The VS221HD2VGA featuresVGA and HDMI inputs to support a wide range of devices, and the built-in converter makes it easy to connect to adisplay without the use of additional adapters.Plus, priority switching encourages on-the-fly collaborationamong students or co-workers, by making it easy to share your projector between multiple source devices. Please note: Digitally encrypted content from the HDMI video source will not be displayed on the VGA display.If you are looking for a similar device with VS221VGA2HD. If you are looking for a similar device with HDMI output, please see our VS221VGA2HD The VS221VGA2HD is TAA compliant and backed by a StarTech.com 2-year warranty, and free lifetime technical support. More from the Manufacturer
Packaged Quantity
1 Each
Product Type
Audio/Video Switchbox
Catalog
AAA Full Line Catalog
Catalog Page
SPC
Technical Information
Connectivity Technology
Cable
Number of Input Devices Supported
2
Device Supported
- Projector
- Display
- Set-top Box
- Computer
- Digital Signage
Number of Displays Supported
1
Video
Graphics Modes
WUXGA
Maximum Video Resolution
1920 x 1200
Interfaces/Ports
HDMI In
Yes
VGA In
Yes
VGA Out
Yes
Audio Line In
Yes
Audio Line Out
Yes
Number of HDMI Inputs
1
Number of VGA Inputs
1
Number of VGA Outputs
1
Power Description
Input Voltage
- 120 V AC
- 230 V AC
Physical Characteristics
Height
0.8"
Width
2.3"
Depth
3.3"
Weight (Approximate)
6.07 oz
Miscellaneous
Package Contents
- 2x1 VGA + HDMI to VGA Converter Switch w/ Priority Switching -1080p
- 1 x Mounting Brackets
- 1 x Universal Power Adapter (NA, EU, UK, ANZ)
- 1 x Instruction Manual
Certifications & Standards
- FCC
- CE
Environmentally Friendly
Yes
Country of Origin
Taiwan
TAA Compliant
Yes
2 Year
